TOP END KIT - RR200 MY19-MY25 STANDARD & MY21-24 RACING MODELS

Piston kit fits all standard RR 200 models from 2019 to 2025, and all racing RR 200 models from 2021-2024

This kit includes the piston, the needle bearing(LEB), spark plug, head washers, head O'rings, power valve gaskets and base gaskets.

Please select which piston size you need.

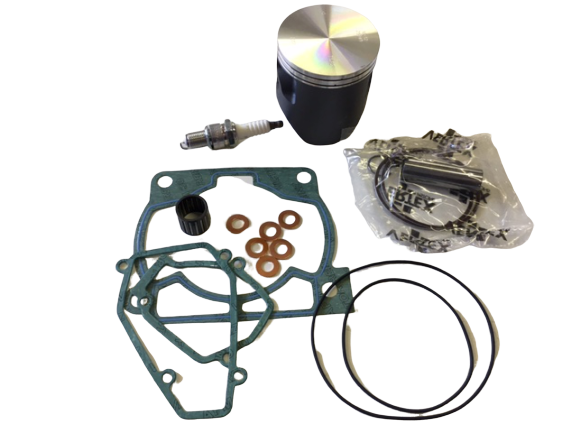

The Top End Kit is comprised of:

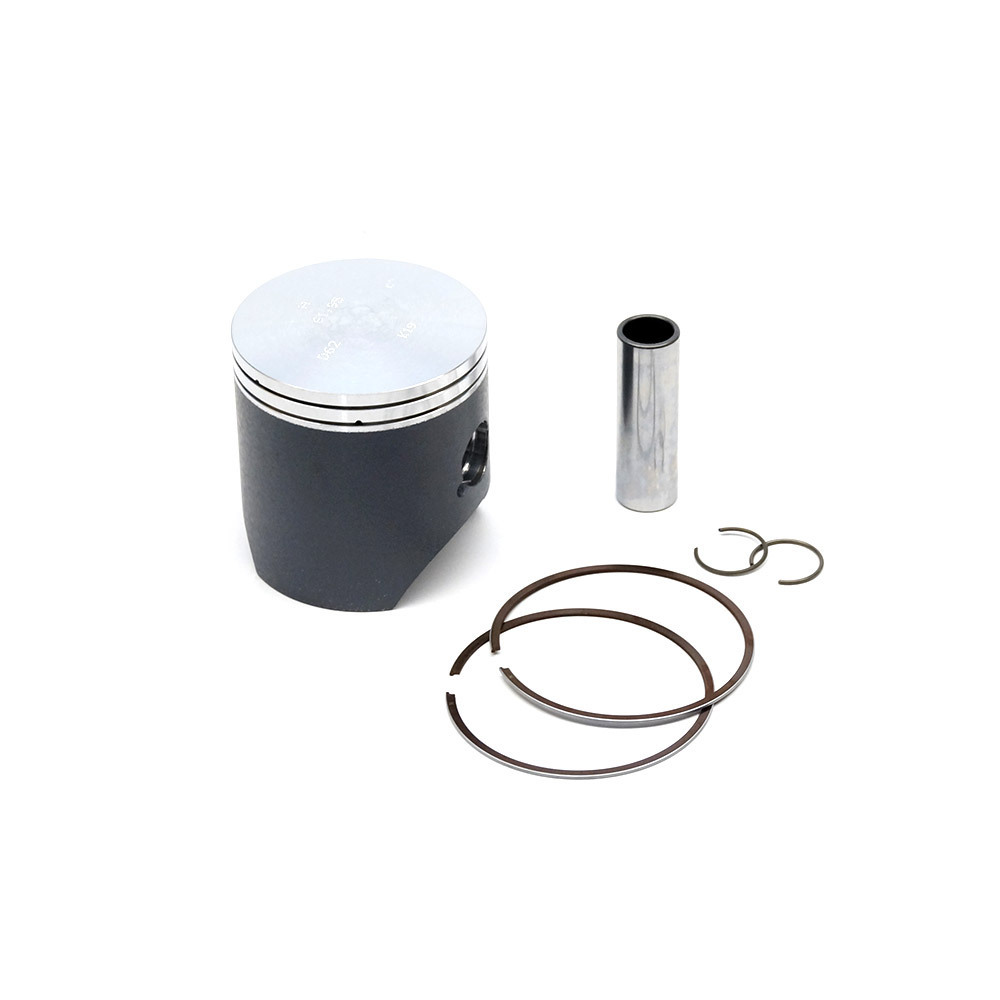

035.02.029.80.0A - PISTON 'A' RR200 MY19>> D=61.95

OR

035.02.029.80.0B - PISTON 'B RR200 MY19>> D=61.96

OR

035.02.029.80.0C - PISTON 'C' RR200 MY19>> D=61.97

AND

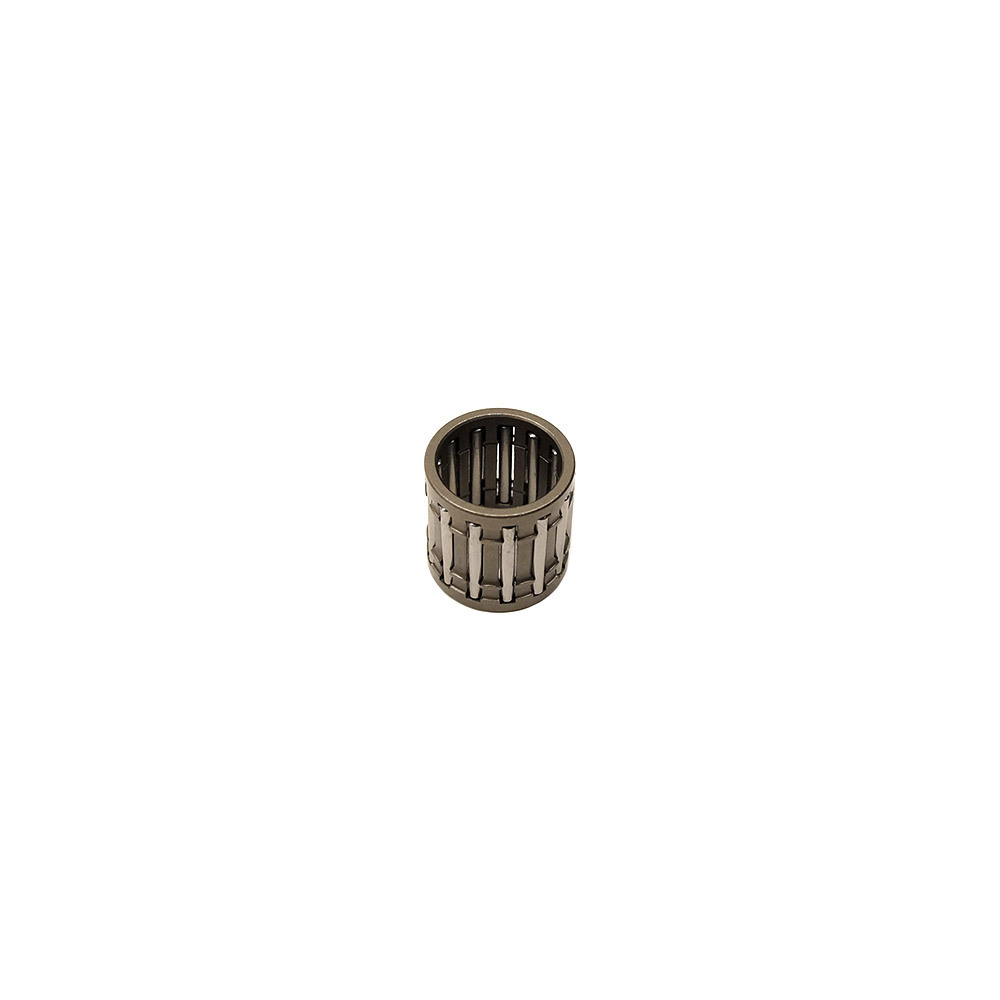

16.14360.000 - NEEDLE BEARING (LEB)

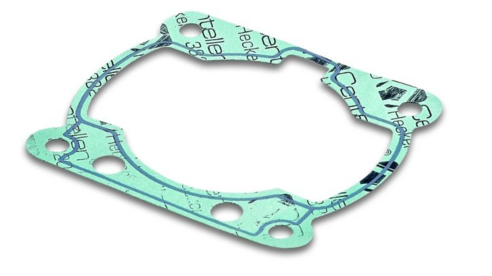

035.11.024.00.00 - CYLINDER BASE GASKET 0.25MM

035.11.010.00.00- CYLINDER BASE GASKET 0.3MM

035.11.011.00.00 - CYLINDER BASE GASKET 0.4MM

035.11.025.00.00 - CYLINDER BASE GASKET 0.6MM

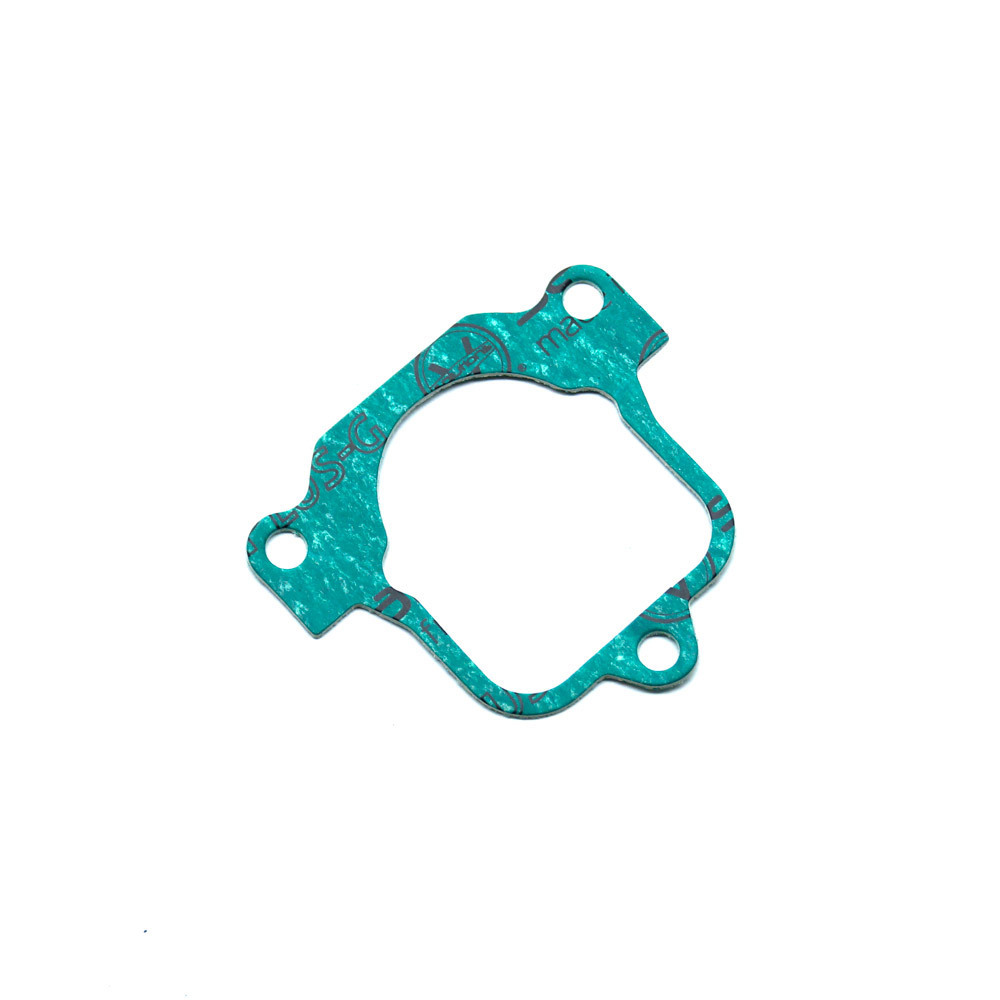

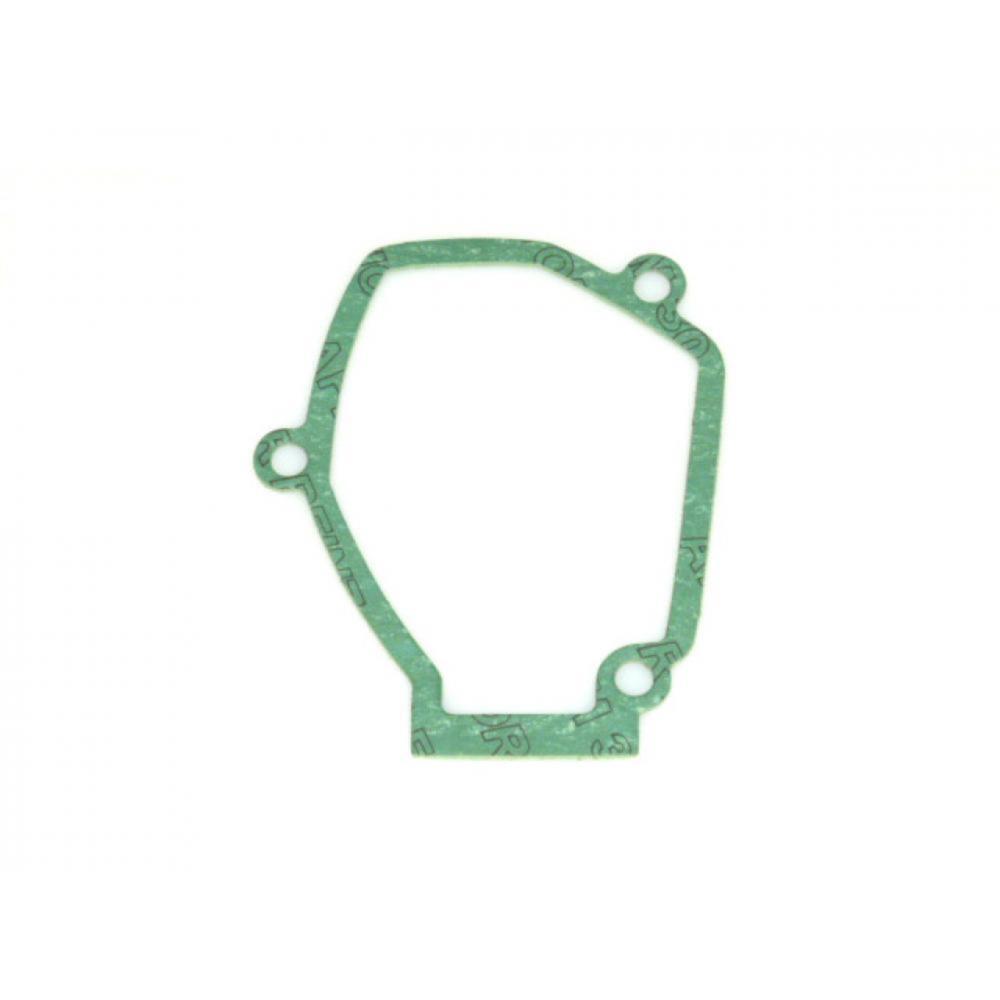

035.11.018.00.00 - GASKET LH POWERVALVE

035.11.033.00.00 - GASKET RH POWERVALVE

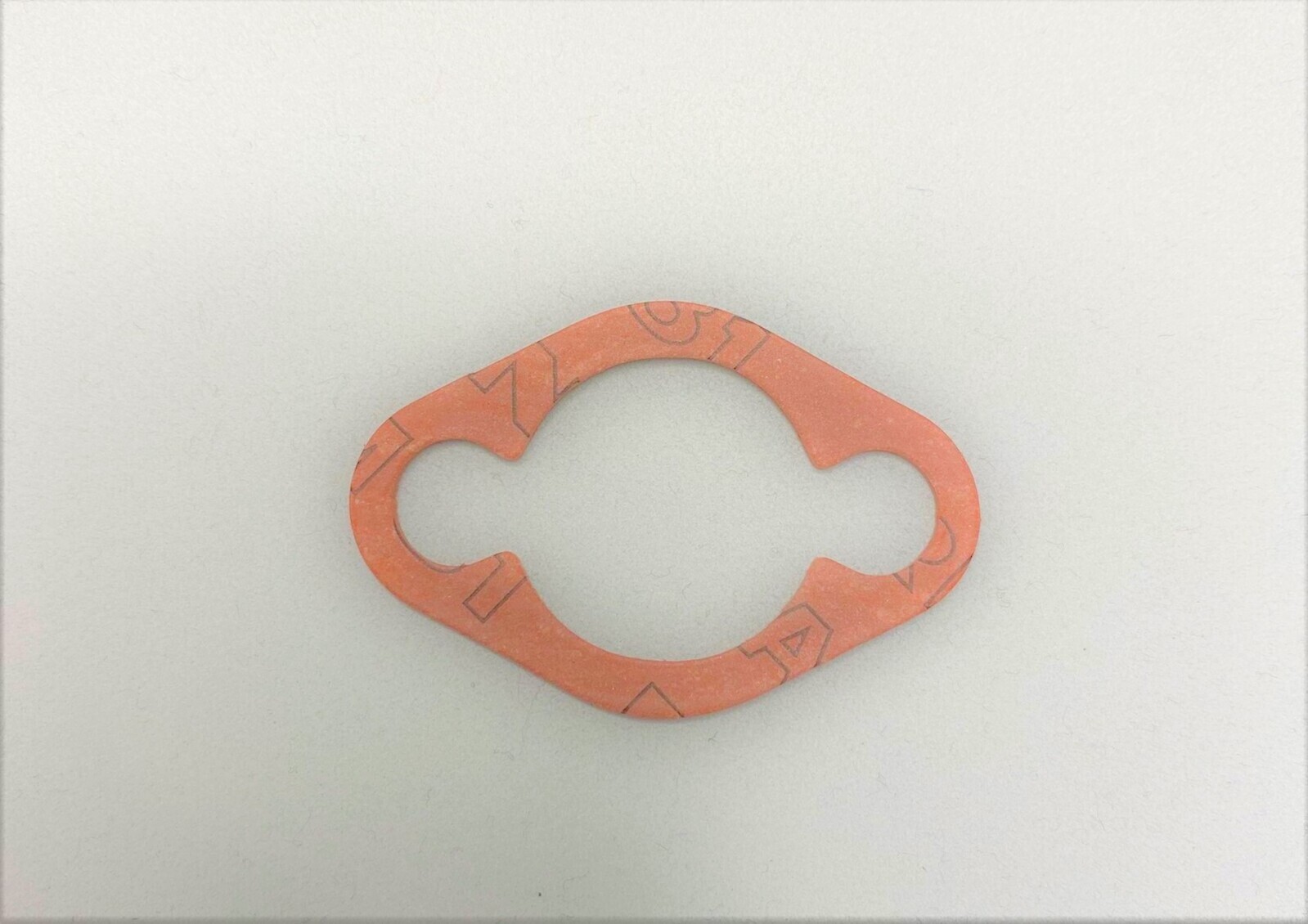

035.11.034.00.00 - GASKET. EXHAUST FLANGE

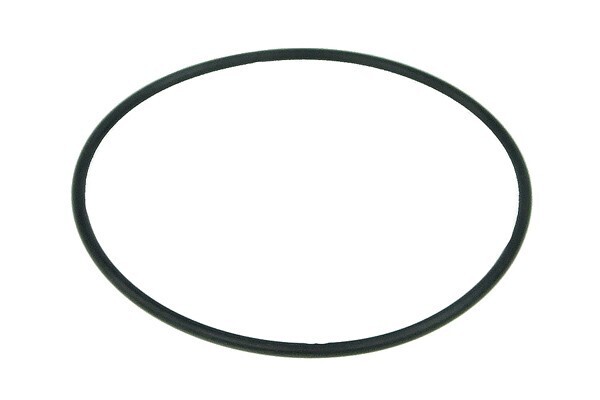

C02.06.064.00.00 - INNER HEAD O'RING 67X2

C02.06.061.00.00 - OUTER HEAD O'RING 92X2

10.66505.000 - O-RING 22.27.2,5 VYTON

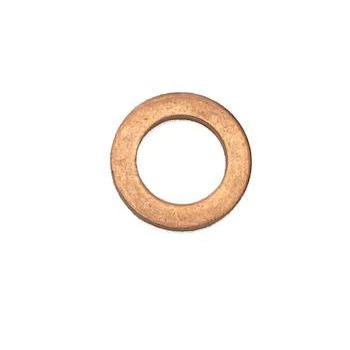

27.45100.000 - WASHER 7.12.0,2 x6

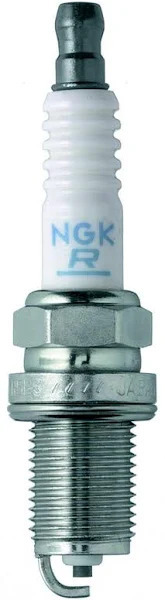

12.25123.000 - NGK SPARK PLUG - BR8ECM
