TOP END KIT - RR250 MY18-MY25 STANDARD & MY18-MY24 RACING MODELS

Piston kit fits all standard RR 250 models from 2018 to 2025, and all racing RR 250 models from 2018-2024.

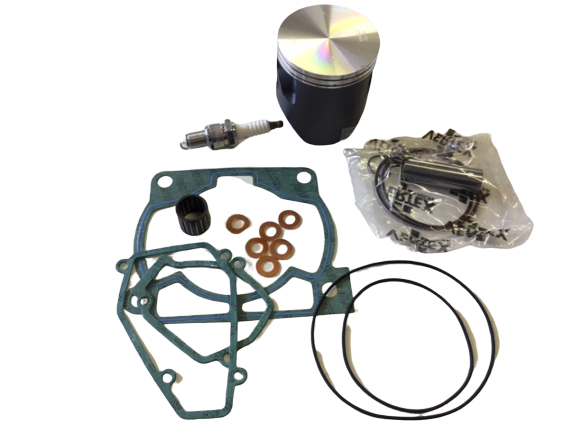

This kit includes the piston, the needle bearing(LEB), spark plug, head washers, head O'rings, power valve gaskets and 0.4mm base gaskets.

Please select which piston size you need.



The Top End Kit is comprised of:

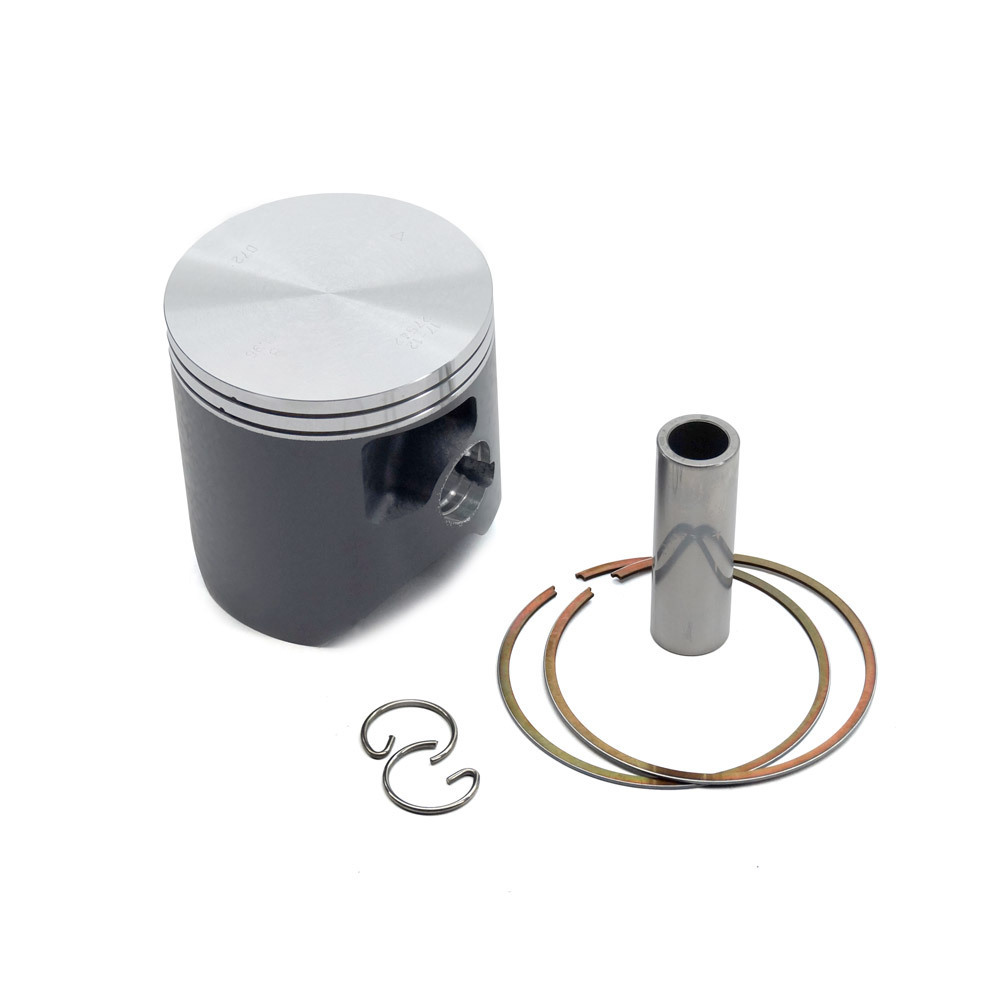

026.02.062.80.0A - ENGINE PISTON 'A" 66.35MM  RR250/MY13> XT250/MY17>

OR

026.02.062.80.0B - ENGINE PISTON 'B" 66.36MM  RR250/MY13> XT250/MY17>

OR

026.02.062.80.0C - ENGINE PISTON 'C" 66.37MM  RR250/MY13> XT250/MY17>

AND

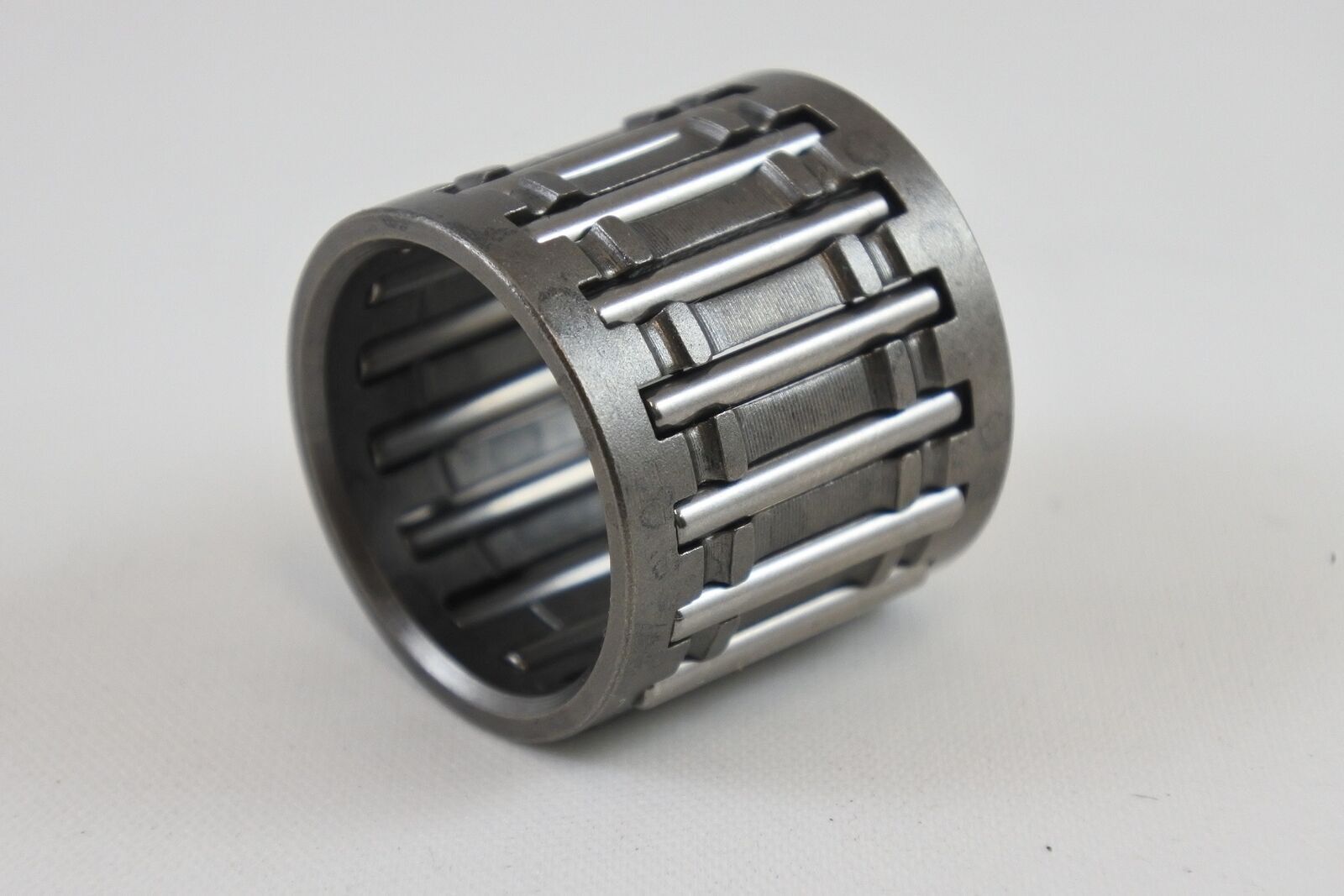

16.16710.000 - BETA LITTLE END NEEDLE BEARING

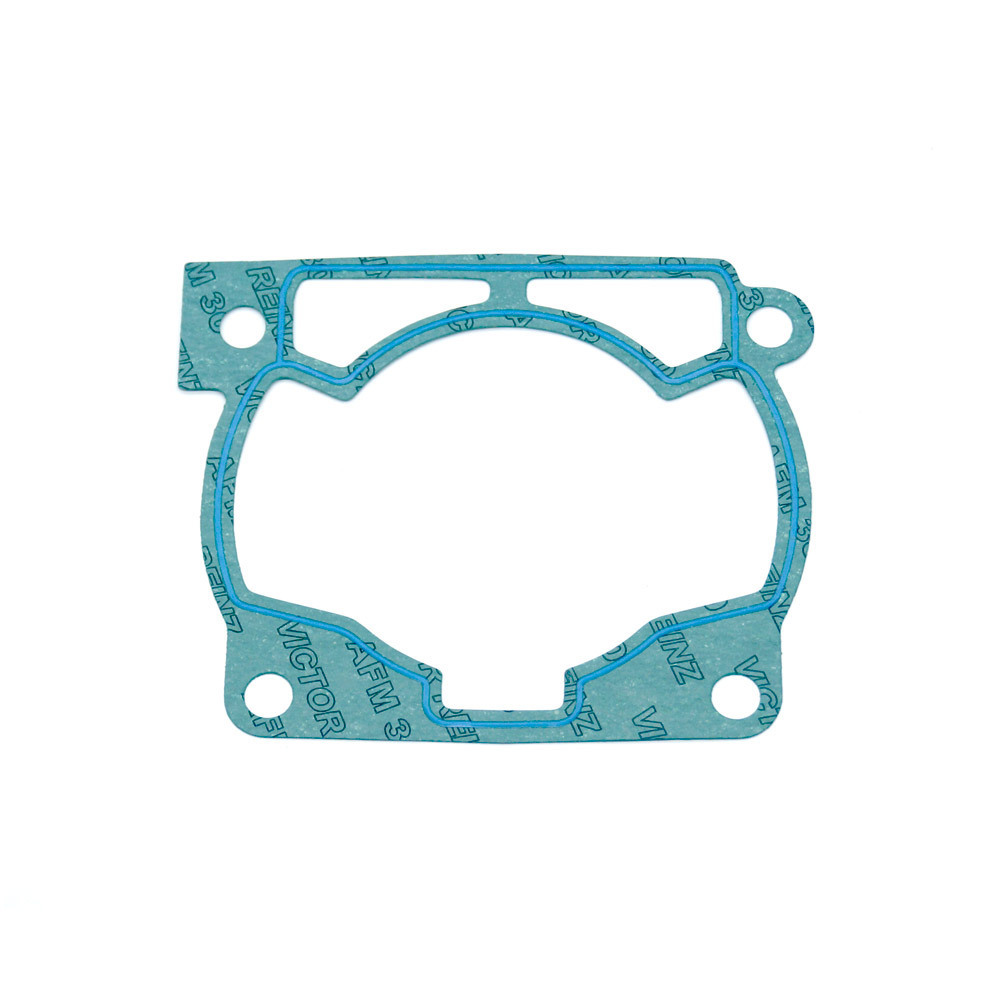

026.11.026.00.00 - CYLINDER BASE GASKET 0,40MM

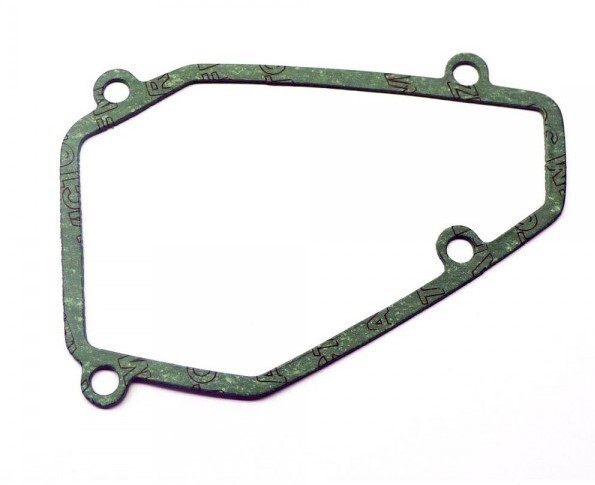

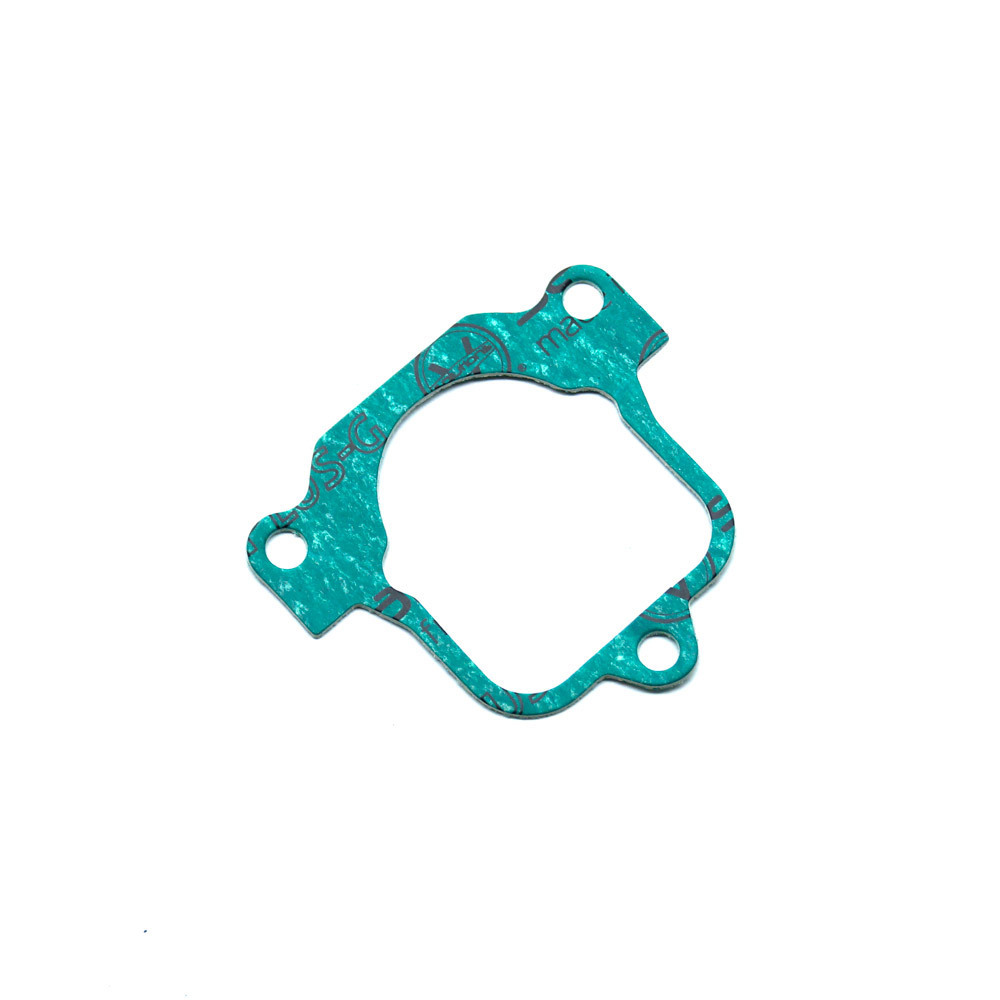

026.11.005.00.00 - LEFT POWER VALVE COVER GASKET

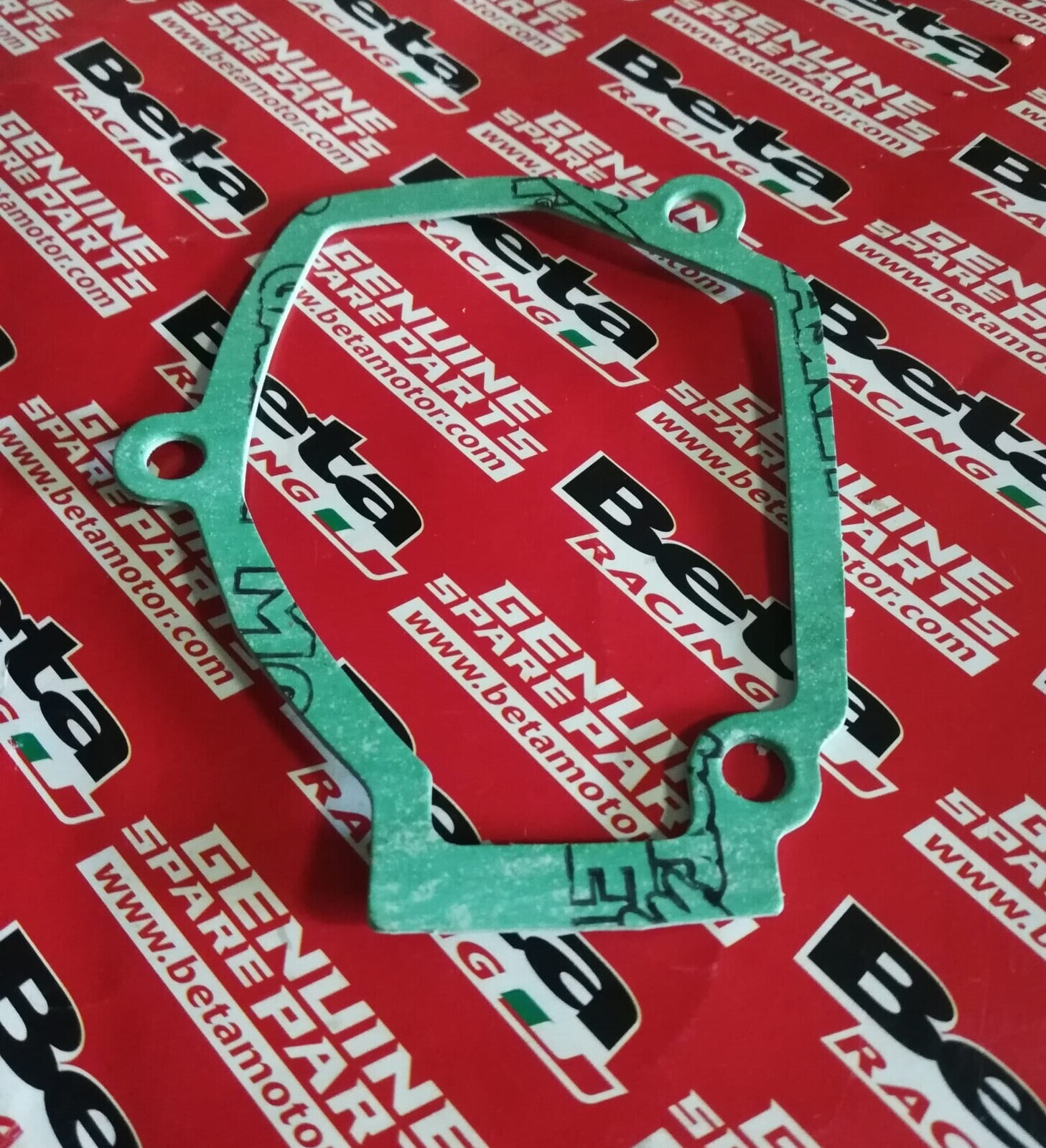

026.11.003.00.00 - RIGHT POWER VALVE COVER GASKET

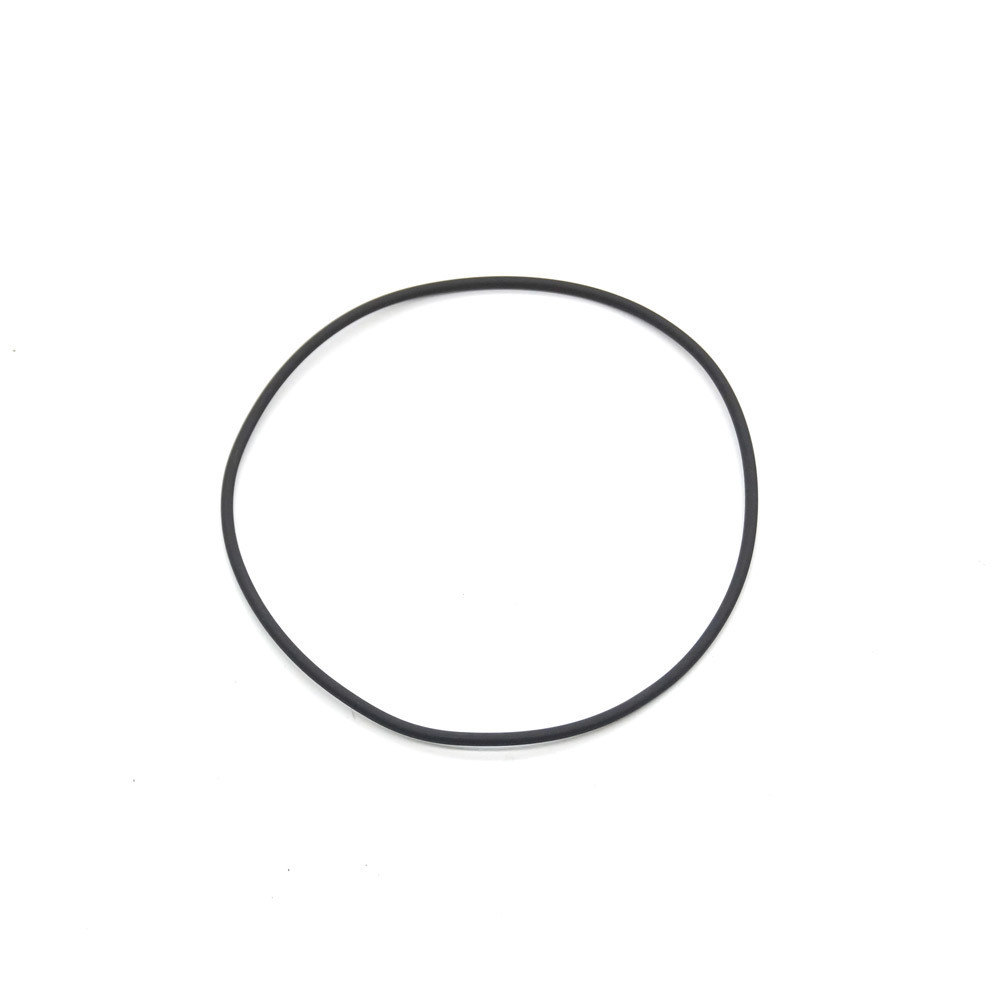

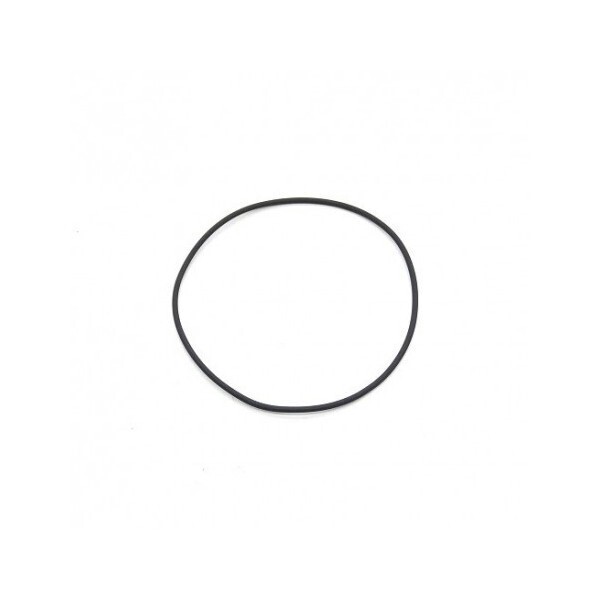

10.66972.000 - OIL SEAL O'RING 73.2 VITON

10.66978.000 - OIL SEAL O'RING 105.2 VITON

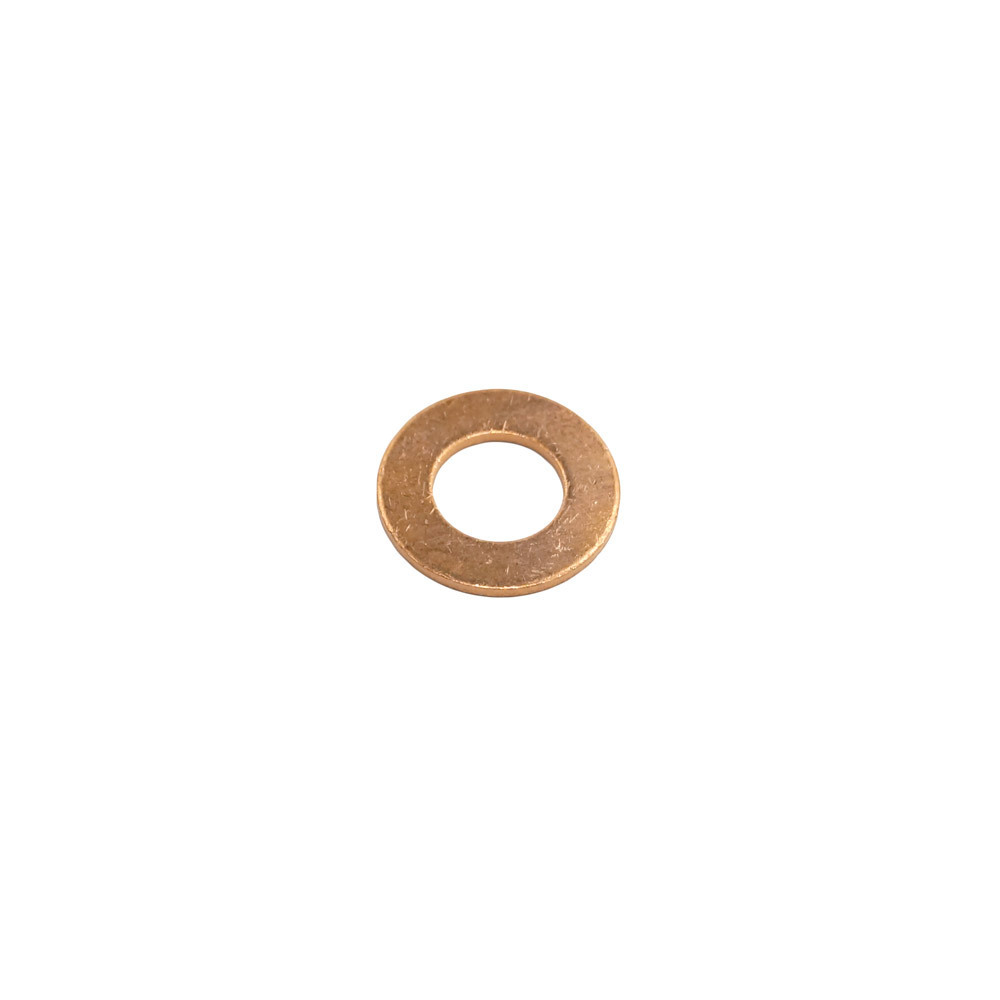

026.11.010.00.00 - WASHER 8.16.1 x6

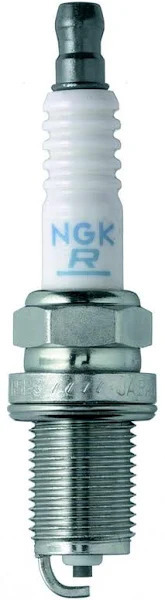

12.25123.000 - NGK SPARK PLUG - BR8ECM

026.11.038.00.00 - EXHAUST FLANGE GASKET
